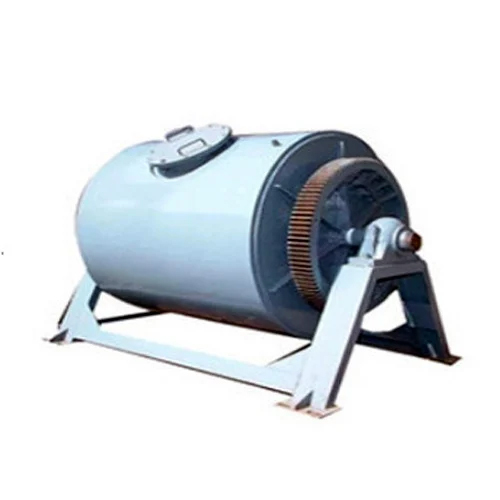

Industrial Cylindrical Ball Mill

Description of an Industrial Cylindrical Ball Mill

A cylindrical ball mill consists of a large hollow cylinder mounted horizontally and partially filled with steel balls, ceramic balls, or other grinding media. The cylinder rotates around its horizontal axis, causing the grinding media to tumble and crush the material inside through impact and attrition.

Main Components

• Cylinder (Shell):
  A heavy steel cylindrical drum lined internally with wear-resistant materials like rubber, manganese steel, or ceramic liners.
• Grinding Media:
  Steel balls, ceramic balls, or cast iron balls that perform the grinding action.
• Motor and Drive System:
  Provides rotational motion through gears, belts, or direct coupling.
• Feed Inlet:
  Opening where raw material enters the mill.
• Discharge Outlet:
  Allows the ground material to leave the mill.
• Liners:
  Protect the shell from wear and help lift the grinding media during rotation.

Working Principle

As the cylinder rotates:

1. The grinding media rises along the inner wall due to centrifugal force.
2. The balls then fall or cascade onto the material.
3. Impact and friction reduce the material into fine particles.
4. Ground material exits through the discharge end.

Types of Ball Mills

• Dry Ball Mill used for dry materials.
• Wet Ball Mill material is mixed with water during grinding.
• Batch Ball Mill operates for a fixed amount of material.
• Continuous Ball Mill material continuously enters and exits.

Applications

Industrial cylindrical ball mills are used in:

• Cement manufacturing
• Ore processing
• Paint and pigment production
• Ceramic industries
• Chemical industries
• Pharmaceutical processing

Advantages

• Produces very fine powder
• Suitable for both wet and dry grinding
• Can handle large production capacities
• Reliable and simple operation

Disadvantages

• High energy consumption
• Wear of grinding media and liners
• Noise generation during operation

Simple Definition

An industrial cylindrical ball mill is a rotating cylindrical machine filled with grinding media used to crush and grind materials into fine powder for industrial applications.
